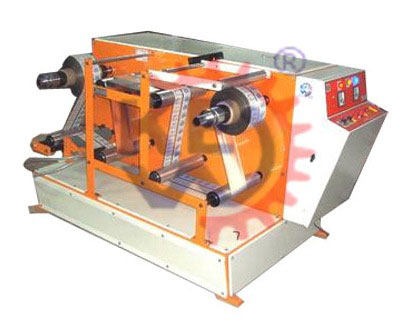

High Speed
Re - Reeling Machine

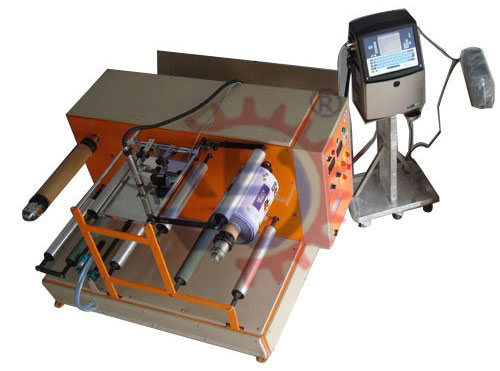

Winding Rewinding Machine for Inkjet Printer




Winding Rewinding Machine For Inkjet Printer

Specialized and Genuine Manufacturer of Winding Rewinding Machine also, we have been successfully manufacturing, exporting & supplying all types of Doctoring Rewinding Machine and Winding Rewinding for Inkjet and Batch Printing since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing.


KEW Manufacturers, exports & supplies Winding Rewinding with high production output & efficient edge guiding function with more than 4000 installation in place all over India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc. making us the biggest manufacturer, exporter & supplier of Winding Rewinding. Winding Rewinding can also be used as Winder Rewinder for Inkjet or Batch Coding application.


  Winding Rewinding Machine Video

Winding Rewinding Machine

Our Winding Rewinding is used for all types of Laminates like, Foil, Paper, LDPE, HDPE, PVC, etc. Our Winding Rewinding is manufactured with us most precision which ensure zero maintenance up to 10 years.


Our Winding Rewinding for Inkjet Printing & Batch Printing are widely used by all Printer Manufacturers all over the world. Our Winding Rewinding give efficient prompt printing an all types of laminates like, Foil, Paper, LDPE, HDPE, PVC, etc. The Batch Coding application for Winder Rewinder Machine is coupled beautifully & synchronized well.


Winding Rewinding is used for Converting & Batch Printing Application:

Salvage Rewinding (Correcting badly Wounded Reels for Inspection & Doctoring Operation). Printing of Mfg. Date, Expiry Date, Batch No., Sr. No,


WINDING REWINDING INTRODUCTION:

In any paper, film and foil conversing industries, the Winder/Rewinder (Doctor Machine) is used widely for on-line printing of Mfg. Dt., Exp. Dt. B. No. etc. using Ink- jet printer or other contact coding machines from Roll to Roll at high speeds & then these printed roll are used in various packaging machines.


Range of Winding Rewinding:
  • 18 different models available.

WINDING REWINDING FEATURES:
  • Cantilever design balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  • Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Ink Jet Printing System with Hot air ink drying.
  • The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  • It is great substitute to online coding / batching operation

WINDING REWINDING STRUCTURE FITTING:

M.S. CHANNEL FRAME BODY with mechanical clutch & break unwind / unwind system, unwind / rewind shaft & cones for printed material holding cores for printed material cores, alum – guide roller & all other standard accessories.


ACCESSORIES FOR INKJET CODER MOUNTING INCLUDED IN THE MACHINE
Technical Specification:
  • Web Width : 100 mm to 1500 mm
  • Maximum Weight of Unwind: 100 Kg to 1000 Kg (Different Models for different Weight)
  • Max Parent Reel dia.: 400 mm.
  • Max. Rewind reel dia.: 400 mm
  • Rewind Core Dia.: 76 mm
  • Motor: 2 HP DC motor / 2 HP AC motor (3 HP, 5 HP also available on suitable Model)
  • Max. Designed Speed: 100 to 150 Mtrs / min

SUITABLE FOR ALL TYPES OF INKJET CODER / THERMAL PRINTER:

ANY MAKE INKJET PRINTER / THERMAL PRINTER CAN BE SUPPLIED ALONG WITH OUR WINDER REWINDER like Markem-Imaje, Domino, Videojet, Alphajet, Control Print, Jet Inks, Linx, etc.

Optional Parts for Winding Rewinding:
  • Line Guide System for Electronic Edge Sensing for Perfect Winding
  • Air Shaft at Unwinder & Rewinder
  • Tension Control System for Auto Tension at Unwinder.
  • Reverse Forward System
  • Stroboscopic Equipment for Inspection
  • Techno Feed System to keep speed constant from start to end of roll
  • Encoder for Inkjet Printer
  • High Capacity Blower Fan with Heater (800W) attached to facilitate quick drying of Ink
  • Slitting Arrangement

Advantages of Winding Rewinding:
  • Corrosion resistant
  • Affordable
  • Easy to operate

Features of Winding Rewinding:
  • Convenient height for operation
  • Compact Design
  • Variable speed drive
  • Double drive

Various Application of Winding Rewinding:
  • Winding Rewinding / Inspection Rewinder Machine
  • Rewinding Machine for Inkjet Coding
  • Coil Rewinding Machine
  • Salvage Rewinder with Reversible Operation

  Winding Rewinding Machine Video
