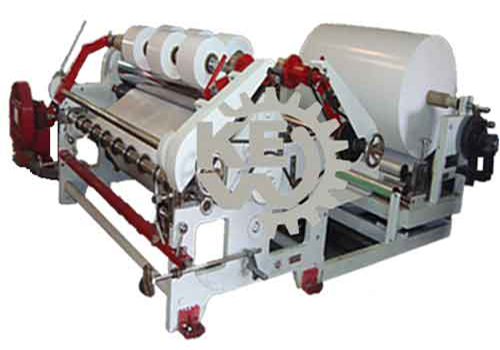

SLITTER REWINDER MACHINE



Slitter Rewinder Machine

We have been successfully manufacturer of Slitter Rewinder Machine. Also exporting & supplying all types of slitting rewinding machine from 25 years over India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing


KEW manufacturers, exports & supplies highest number of Slitting Rewinding Machine from India, with more than 1400 installations all over India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc. and Slitting of all types of material like Plastic, Paper, Flexible Packaging, PVC, Aluminum Foil, Stretch Film, LDPE Film, BOPP Film, BOPP Tape, OPP, METPET, Pet Film, OPA, Non-Woven Fabric, Paper Board, Adhesive Tape, Film Ribbon, Textile Cloth, Nylon Fabric, Micro Tape, etc. makes us most experienced manufacturer, exporter & supplier of Slitter Rewinder Machine from Ahmedabad, Gujarat, India. In addition to above, our Slitting Rewinding Machine is also used for Slitting of Laminates, Coated Paper, Telex & Fax Roll, Adhesive Tapes, Photograph Paper, Ice Cream Cup Paper, Laminated Film, Cling Film, etc.


   Slitter Rewinder Machine Video


Slitter Rewinder Machine

After Printing in Rotogravure or Flexo Machine or Extruded materials, our Slitter Rewinder Machine comes in use for Slitting of all types of material. Our machine is an ultimate Slitter and Rewinder Machine for its accurate slitting and rewinding qualities. It ensures perfect slitting of rolls with consistent, flawless results and constant line speed. It is available in adaptable model to suit your requirement. Our Slitter Rewinder Machine is available in Rewinder, Duplex surface slitter and Rewinder and Canti lever differential slitter and Rewinder. Our Slitting Machine is renowned for its accurate slitting at a higher speed and vibration less working.


KEW offers Slitter Rewinder Machine for various types of materials:



  • Plastic Slitter Rewinder
  • Paper Slitter Rewinder
  • PVC Slitter Rewinder
  • Aluminum Foil Slitter Rewinder
  • Stretch Films Slitter Rewinder
  • Polyester Film Slitter Rewinder
  • LDPE Film Slitter Rewinder
  • BOPP Film Slitter Rewinder
  • BOPP Tape Slitter Rewinder
  • OPP CPP Films Slitter Rewinder
  • METPET Film Slitter Rewinder
  • PET Film Slitter Rewinder
  • OPA Film Slitter Rewinder
  • Non Woven Fabric Slitter Rewinder
  • Woven Sack Slitter Rewinder
  • Paper Board Slitter Rewinder
  • Adhesive Tape Slitter Rewinder
  • Film Ribbon Slitter Rewinder
  • Textile Cloth Slitter Rewinder
  • Nylon Fabric Slitter Rewinder
  • Micro Tape Slitter Rewinder
  • Coated Paper Slitter Rewinder
  • Ice Cream Cup Paper Slitter Rewinder
  • Fax Roll Paper Slitter Rewinder
  • Laminated Film Slitter Rewinder
  • Cling Film Slitter Rewinder

KEW Slitting Rewinding Machine ensure perfect slitting of rolls with consistent flawless quality and constant line speed. It is available in adaptable model to suit your requirement.


Salient Features:
  • Most versatile, model providing combination of duplex center cum Surface Rewinder Machine
  • Constantly flawless slit rolls by providing center driver drum to maintain. Fixed minimum distance between slitting and rewind point
  • Constant line speed causes constant tension rolls
  • Two Rewinding shafts carried on swinging arms are center driven through adjustable slipping clutch
  • Counter balance system to adjust the pressure between rewind reels and center drum
  • Suitable for off caliper / slippery / stretchy material
  • In special case rewinding shaft can be supplied with provision of individual. Different slip assembly for each slit reels
  • Slitting methods as per customer requirement like: Scissor cut/crush cut (Circular knives)/ Razor blade slitting system
  • Side Frame Construction of Ribbed Anti Vibration C.I Body.
  • Rewind – Central Drum Or Duplex Type.
  • Dynamically balances drive rollers.
  • Trim Separation by Air Blower of 1.0 hp AC Motor.
  • Line Speed up to 100 – 200 meter /min. Depending on the thickness of the materials & operating conditions.
  • Customized Roll Handling System For Enhanced production & Ergonomic Safety.
  • AC/DC Drive system.

Technical Specification of Slitter Rewinder Machine:
  • Web width: 400 to 4000 mm
  • Max. dia. Of stock roll: 600 – 1000 mm (1200 mm – 1400 mm Optional)
  • Min. slit width: 25 mm
  • Dia. Of finished roll: 400 to 600 / 1000 mm / 1200 mm – 1400 mm (Optional)
  • Operating speed: 3-15 HP at 415 V, 3 Phase , 50 cycles A.C. Supply

OPTIONAL ATTACHMENTS:
  • Auto tension control for unwind unit
  • KEW Web edge guide system (Hydraulic / Digital ultra sonic)
  • Pneumatic system for Arm / Clutch / Brake / Nip
  • Air shaft for unwind station
  • Digital line edge guide system Safety chucks Bow rollers
  • Four motor synchronised drive


SHAFT WINDER SLITTER REWINDER MACHINE


DUPLEX CENTER SHAFT TYPE SLITTER REWINDER

  • Max. Web Width : Up to 1500mm
  • Unwind Reel Dia. : 1000mm
  • Rewind Reel Dia. : 450mm
  • Max. Machine Speed (Design) : 150 Mtrs/Min.
UNWIND STATION:
  • One Mechanical / Automatic Web guiding system.
  • One Mechanical / Automatic Brake.
  • Min. Slit Width 100mm
  • Razor Cutting. (Standard) (Circular Knife) (Optional)

REWIND STATION:
  • Type of rewinding duplex differential.
  • Rewind control through, two clutch assemblies mechanical.
  • Two lay on roll.
  • Individual slip ring arrangement as per require cut.

NIP UNIT:
  • With one full width Capacity, hard chrome plated steel roller 150mm
  • Dia. and one 150mm dia. synthetic rubber roll.
  • One Pressure adjusting device Mechanical for Nip Roller Pneumatic (Optional).

CONTROL PANEL:
  • Variable A.C. drive with Blower & Power Pack.

OPTIONAL:
  • Auto Tension Control for unwind/Rewind. Line guide system.

   Slitter Rewinder Machine Video
