Doctoring Rewinding Machine




Doctoring Rewinding

We have been successfully manufacturing, exporting & supplying all types of Doctoring Rewinding and Winding Rewinding for Inkjet and Batch Printing since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing.


KEW Manufacturers, exports & supplies Doctoring Rewinding with high production output & efficient edge guiding function with more than 4000 installation in place all over India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc. making us the biggest manufacturer, exporter & supplier of Doctoring Rewinding. Doctoring Rewinding can also be used as Winder Rewinder for Inkjet or Batch Coding application.


   Doctoring Rewinding Video

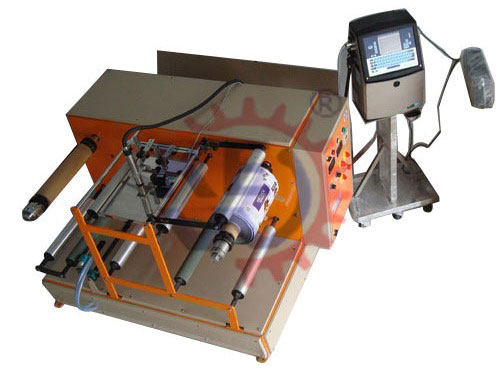

Doctoring Rewinding Machine

Our Doctoring Rewinding is used for all types of Laminates like, Foil, Paper, LDPE, HDPE, PVC, etc... Our Doctoring Rewinding is manufactured with us most precision which ensure zero maintenance up to 10 years.


Our Winder Rewinder Machines for Inkjet Printing & Batch Printing are widely used by all Printer Manufacturers all over the world. Our Doctoring Rewinding give efficient prompt printing an all types of laminates like, Foil, Paper, LDPE, HDPE, PVC, etc. The Batch Coding application for Winder Rewinder Machine is coupled beautifully & synchronized well.


Doctoring Rewinding is used for Converting & Batch Printing Application:

Salvage Rewinding (Correcting badly Wounded Reels for Inspection & Doctoring Operation.) Printing of Mfg. Date, Expiry Date, Batch No., Sr. No,


DOCTORING REWINDING INTRODUCTION:

In any paper, film and foil conversing industries, the Winder/Rewinder (Doctoring Rewinding) is used widely for on-line printing of Mfg. Dt., Exp. Dt. B. No. etc. using Ink- jet printer or other contact coding machines from Roll to Roll at high speeds & then these printed roll are used in various packaging machines.


Range of Doctoring Rewinding:
  • 18 Different Models available.

DOCTORING REWINDING FEATURES:
  • Cantilever design balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  • Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Ink Jet Printing System with Hot air ink drying.
  • The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  • It is great substitute to online coding / batching operation

DCTORING REWINDING STRUCTURE FITTING:

M.S. CHANNEL FRAME BODY with mechanical clutch & break unwind / unwind system, unwind / rewind shaft & cones for printed material holding cores for printed material cores, alum – guide roller & all other standard accessories.


ACCESSORIES FOR INKJET CODER MOUNTING INCLUDED IN THE MACHINE
Technical Specification Of Doctoring Rewinding:
  • Web Width : 100 mm to 1500 mm
  • Maximum Weight of Unwind: 100 Kg to 1000 Kg (Different Models for different Weight)
  • Max Parent Reel dia.: 400 mm.
  • Max. Rewind reel dia.: 400 mm
  • Rewind Core Dia.: 76 mm
  • Motor: 2 HP DC motor / 2 HP AC motor (3 HP, 5 HP also available on suitable Model)
  • Max. Designed Speed: 100 to 150 Mtrs / min

DOCTORING REWINDING SUITABLE FOR ALL TYPES OF INKJET CODER / THERMAL PRINTER:

ANY MAKE INKJET PRINTER / THERMAL PRINTER CAN BE SUPPLIED ALONG WITH OUR DOCTORING REWINDING like Markem-Imaje, Domino, Videojet, Alphajet, Control Print, Jet Inks, Linx, etc.

Optional Parts for Doctoring Rewinding:
  • Line Guide System for Electronic Edge Sensing for Perfect Winding
  • Air Shaft at Unwinder & Rewinder
  • Tension Control System for Auto Tension at Unwinder.
  • Reverse Forward System
  • Stroboscopic Equipment for Inspection
  • Techno Feed System to keep speed constant from start to end of roll
  • Encoder for Inkjet Printer
  • High Capacity Blower Fan with Heater (800W) attached to facilitate quick drying of Ink
  • Slitting Arrangement

Advantages of Doctoring Rewinding:
  • Corrosion resistant
  • Affordable
  • Easy to operate

Features of Doctoring Rewinding:
  • Convenient height for operation
  • Compact Design
  • Variable speed drive
  • Double drive

Various Application of Doctoring Rewinding:
  • Doctoring Rewinding / Inspection Rewinder Machine
  • Doctoring Rewinding for inkjet coding
  • Coil Rewinding Machine
  • Salvage Rewinder with Reversible Operation
